Optimized pattern fragments

Graphix offers several pattern fragments for quantum gates, pre-optimized by reducing the Pauli measurements, with fewer resource requirement than the standard pattern.

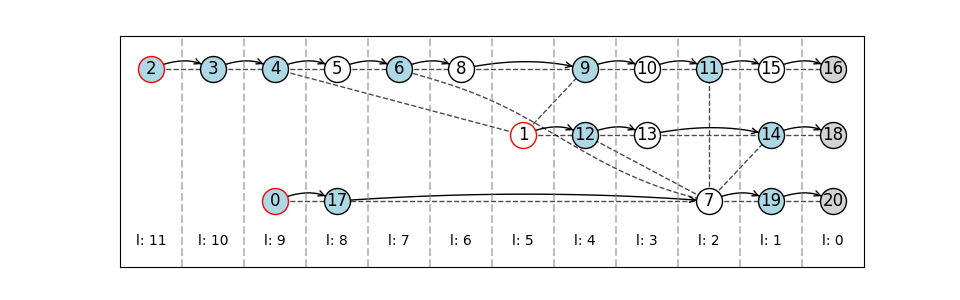

First, for Toffoli gate, here is the pattern based on the decomposition of CCX gate with CNOT and single-qubit rotations, turned into a measurement pattern:

from graphix import Circuit
import numpy as np

circuit = Circuit(3)
circuit.ccx(0, 1, 2)
pattern = circuit.transpile()
pattern.draw_graph(flow_from_pattern=False)

Flow detected in the graph.

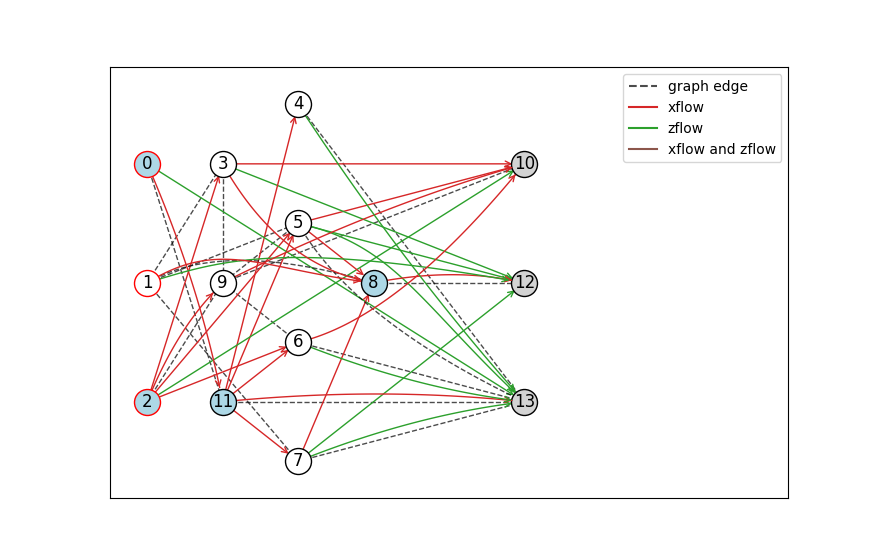

Using opt=True option for transpile method, we switch to patterns with non-XY plane measurements allowed, which has gflow (not flow). For CCX gate, the number of ancilla qubits required is nearly halved:

pattern = circuit.transpile(opt=True)
pattern.draw_graph(node_distance=(1.2,0.8))
# sphinx_gallery_thumbnail_number = 2

The pattern is not consistent with flow or gflow structure.

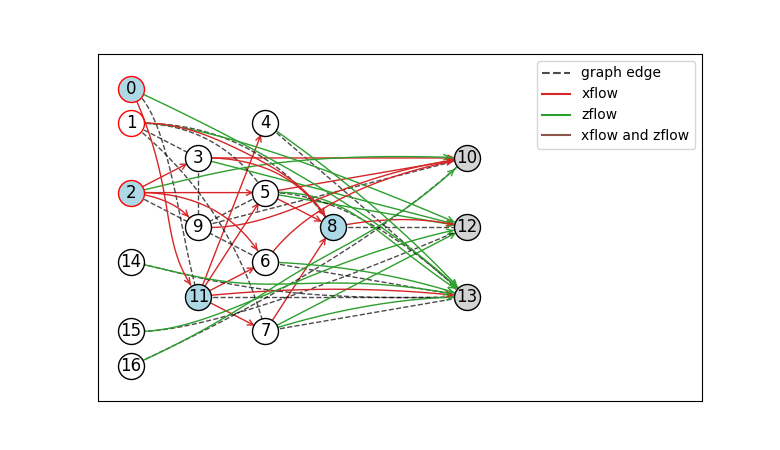

Now let us add z-rotation gates, requiring two ancillas in the original pattern fragment, which becomes one for patterns with opt=True.

circuit = Circuit(3)
circuit.ccx(0, 1, 2)
for i in range(3):
    circuit.rz(i, np.pi/4)
pattern = circuit.transpile(opt=True)
pattern.draw_graph(flow_from_pattern=True, node_distance=(1,0.5))

The pattern is not consistent with flow or gflow structure.

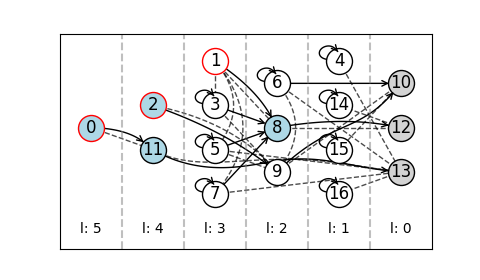

Swap gate is just a swap of node indices during compilation, requiring no ancillas.

circuit = Circuit(3)
circuit.ccx(0, 1, 2)
circuit.swap(1,2)
circuit.swap(2,0)
for i in range(3):
    circuit.rz(i, np.pi/4)
pattern = circuit.transpile(opt=True)
pattern.draw_graph(flow_from_pattern=False, node_distance=(1,0.4))

Gflow detected in the graph. (flow not detected)

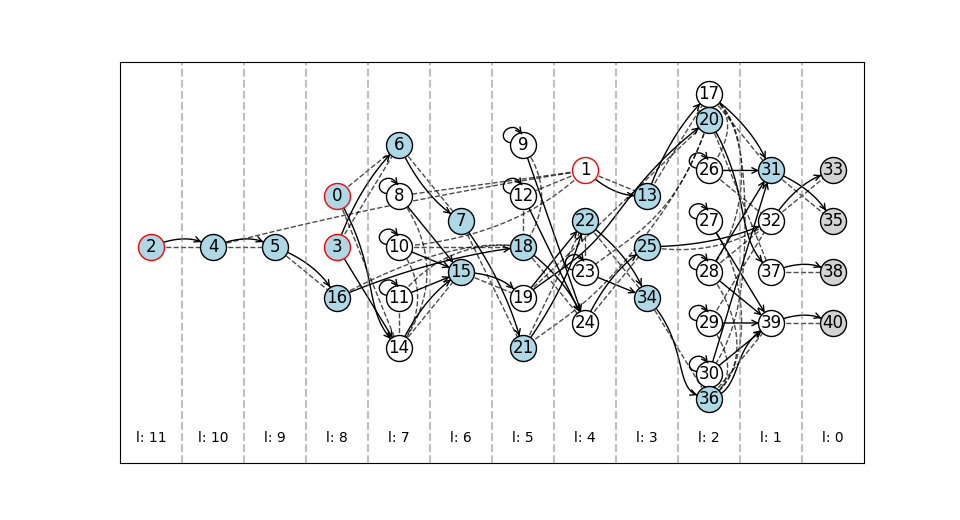

using opt=True and with either CCX, Rzz or Rz gates, the graph will have gflow.

circuit = Circuit(4)
circuit.cnot(1, 2)
circuit.cnot(0, 3)
circuit.ccx(2, 1, 0)
circuit.rx(0, np.pi/3)
circuit.cnot(0, 3)
circuit.rzz(0, 3, np.pi/3)
circuit.rx(2, np.pi/3)
circuit.ccx(3, 1, 2)
circuit.rx(0, np.pi/3)
circuit.rx(3, np.pi/3)
pattern = circuit.transpile(opt=True)
pattern.draw_graph(flow_from_pattern=False, node_distance=(1,0.4))

Gflow detected in the graph. (flow not detected)

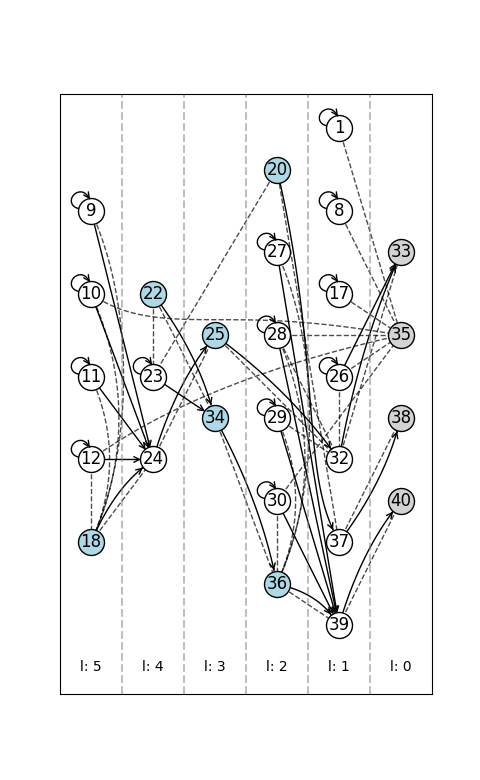

reducing the size further

pattern.perform_pauli_measurements()
pattern.draw_graph(flow_from_pattern=False, node_distance=(1,0.6))

Gflow detected in the graph. (flow not detected)

For linear optical QPUs with single photons, such a resource state can be generated by fusing the follwoing microcluster states:

from graphix.extraction import get_fusion_network_from_graph
nodes, edges = pattern.get_graph()
from graphix import GraphState
gs = GraphState(nodes=nodes, edges=edges)
get_fusion_network_from_graph(gs, max_ghz=4, max_lin=4)

[GHZ[35, 30, 28, 26], GHZ[36, 39, 34, 30], GHZ[18, 24, 12, 11], GHZ[32, 33, 29, 28], GHZ[35, 1, 17], GHZ[35, 8, 12], LINEAR[9, 18, 10, 35], LINEAR[24, 25, 32, 26], GHZ[36, 27, 29], GHZ[28, 36], LINEAR[34, 22, 23, 20], GHZ[37, 38, 20], GHZ[39, 40]]
